CineView SE Details

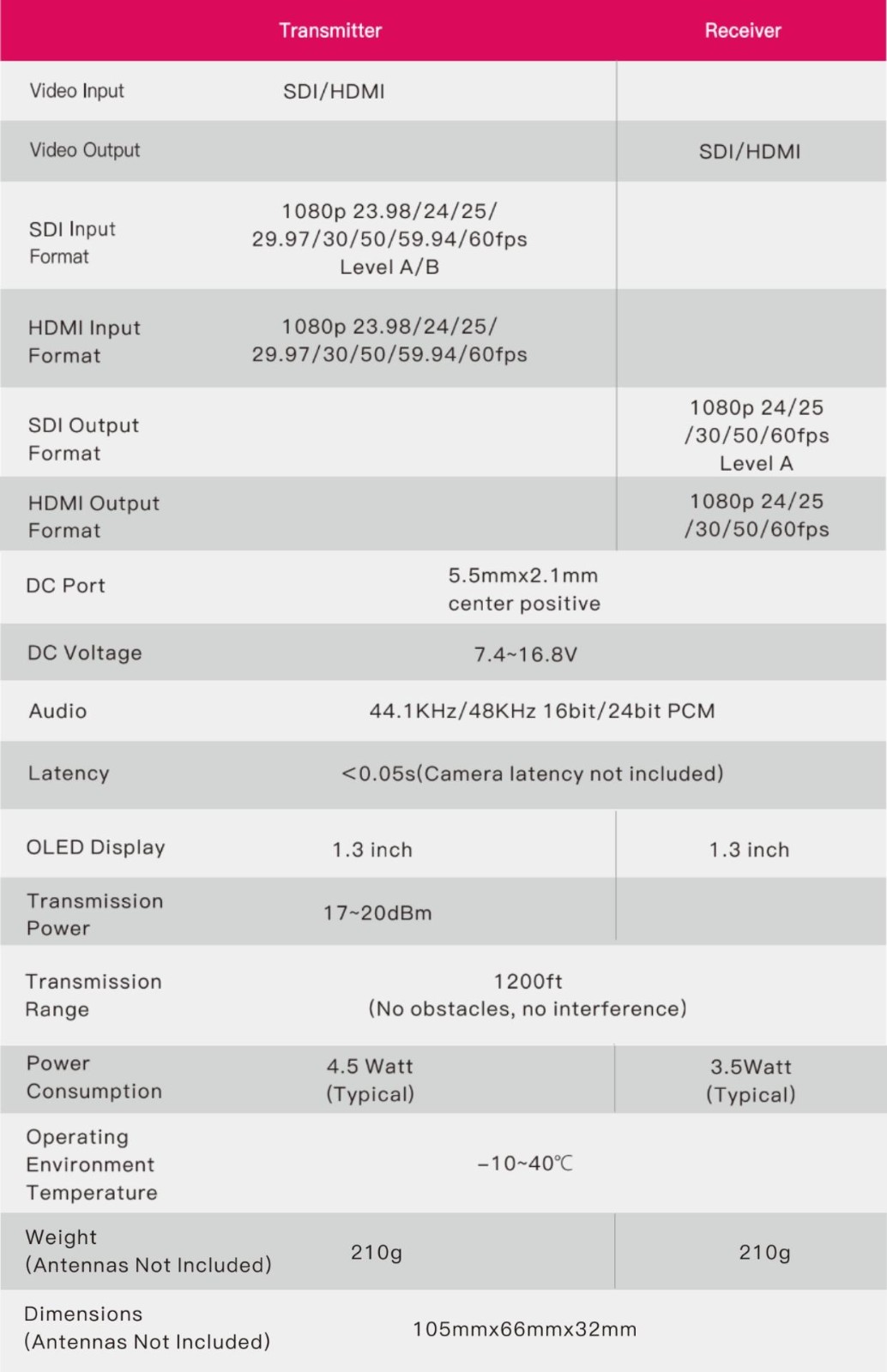

ProjectsTransmitter
Video Input: SDI/HDMI
SDI Input Format: 1080p 23.98/24/25/29.97/30/50/59.94/60fps Level A/B
HDMI Input Format: 1080p 23.98/24/25/29.97/30/50/59.94/60fps
DC Port: 5.5mmx2.1mm center positive
DC Voltage: 7.4~16.8V
Audio: 44.1KHz/48KHz 16bit/24bit PCM
Latency: <0.05s (Camera latency not included)
OLED Display: 1.3inch
Transmission Power: 17~20dBm
Transmission Range: 1200ft (No obstacles, no interference)
Power Consumption: 4.5Watt (Typical)
Operating Environment Temperature: -10~40℃
Dimensions: 105mmx66mmx32mm (Antennas not included)
Weight:10g (Antennas not included)

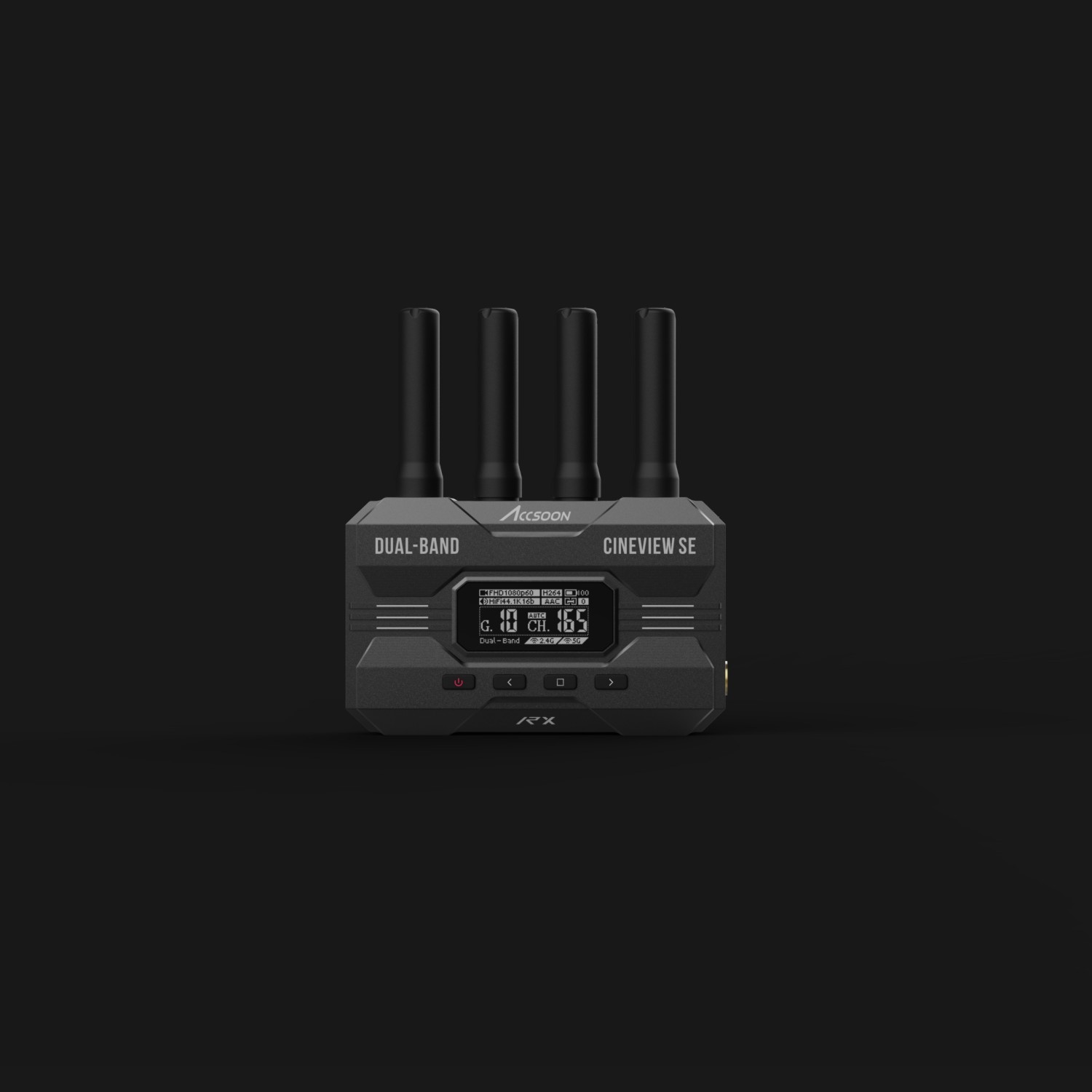

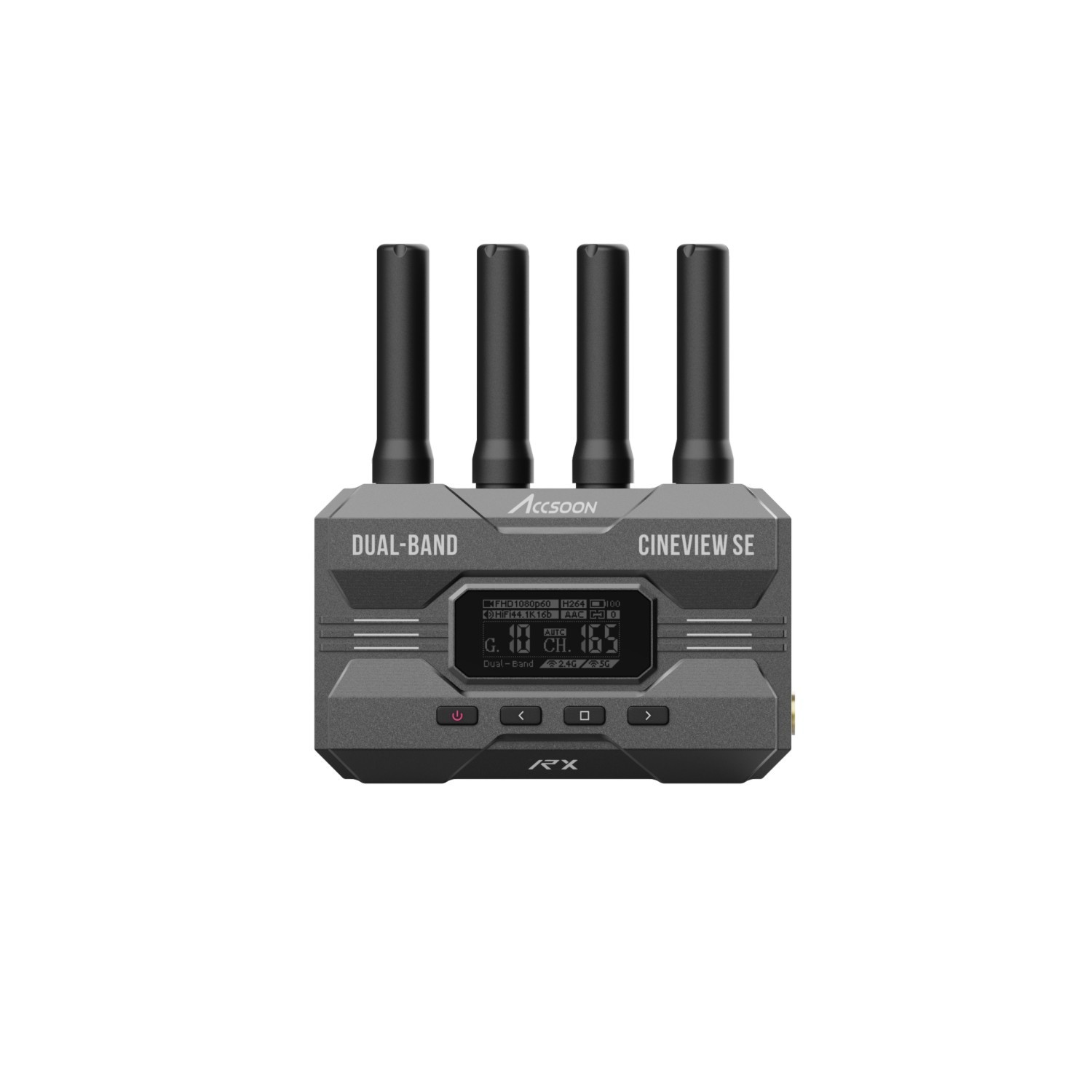

ProjectsReceiver
Video Output: SDI/HDMI
SDI Output Format:1080p 24/25/30/50/60fps Level A
HDMI Output Format:1080p 24/25/30/50/60fps
DC Port: 5.5mmx2.1mm center positive
DC Voltage: 7.4~16.8V
OLED Display: 1.3inch
Power Consumption: 3.5Watt (Typical)Operating Environment Temperature-10~40℃
Dimensions: 105mmx66mmx32mm (Antennas not included)
Weight: 210g (Antennas not included)

Package Including:
1x transmitter
1x receiver
9x Antenna
2x Cold shoe mount adapter
1x User manual
