Descriptions:

COMICA WM100 utilizes UHF wireless technology and LCD lattice screen, it comes with 48 channels in total and 16-levels adjustable volume, built-in with ‘Adjustable RF Strength’, ‘Local Audio Testing’, ‘Real-time Audio Monitor’ functions,etc. Which takes you more professional and convenient recording;

Main Features

• 48 Channels for Multiple Devices Work Together;
• Working Distance Up to 100m without any staccato; (In Open Area)
• Local Audio Test in Transmitter End;
• Real-time Audio Status Monitor in Receiver End;
• Real-time Audio Monitor;
• RF Signal Strength Adjusted in Transmitter End;
• 16 Steps Volume Adjustment;
• Muting Mode;
• Lattice LCD Display, High Resolution;

Specifications:

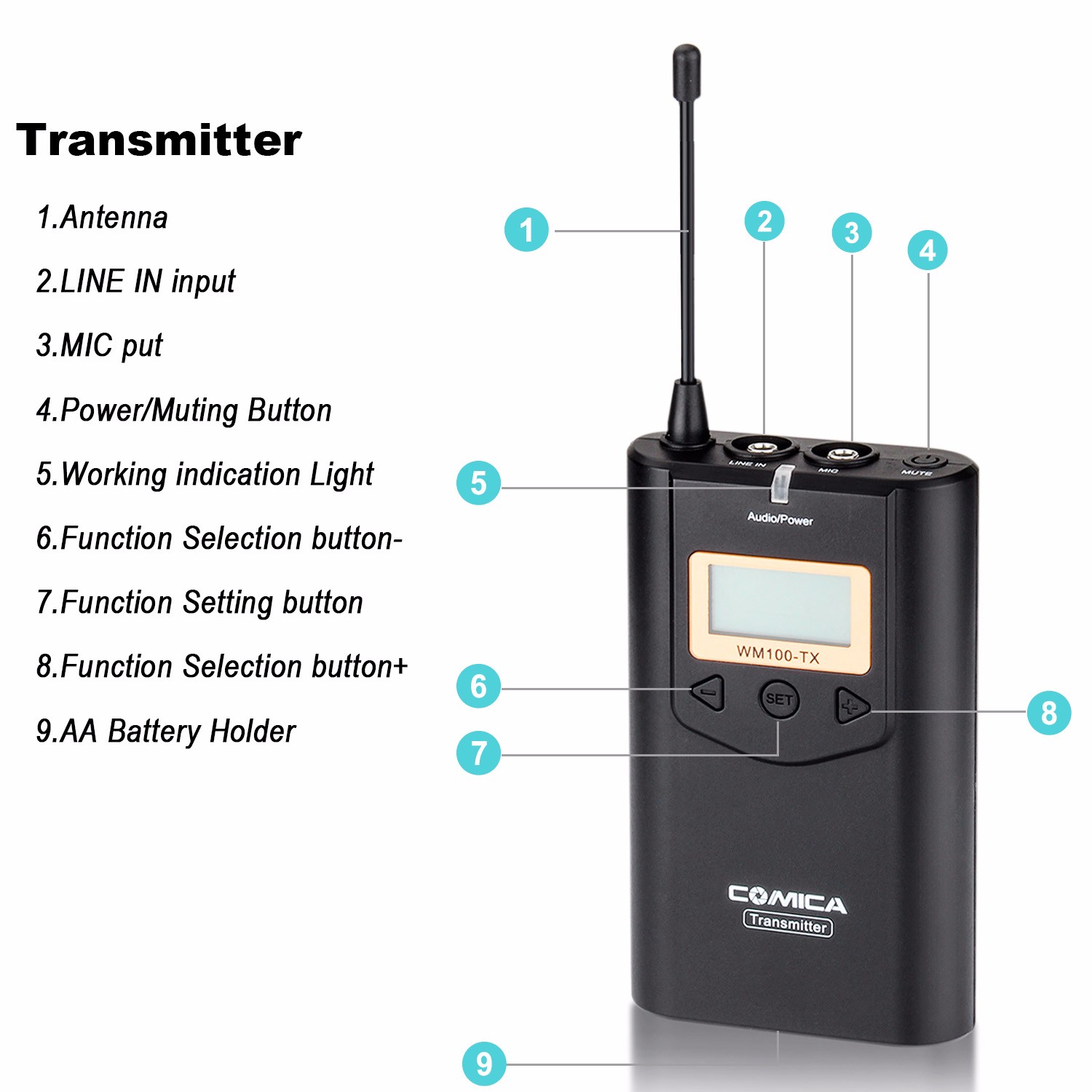

Transmitter

• Channels:48
• Wireless Frequency:615.35MHz ~ 629.45MHz
• Signal / Noise:＞65dB
• Transmitting Power: 10dBm / 15dBm
• Stray Radiation:＜-60dBc
• Sound Delay:＜20ms
• Audio Distortion:＜0.5%
• Audio Input: 3.5mm Port
• Supported Battery: AA Batteries x 2pcs
• Size: 111.5 x 65 x 25.3mm

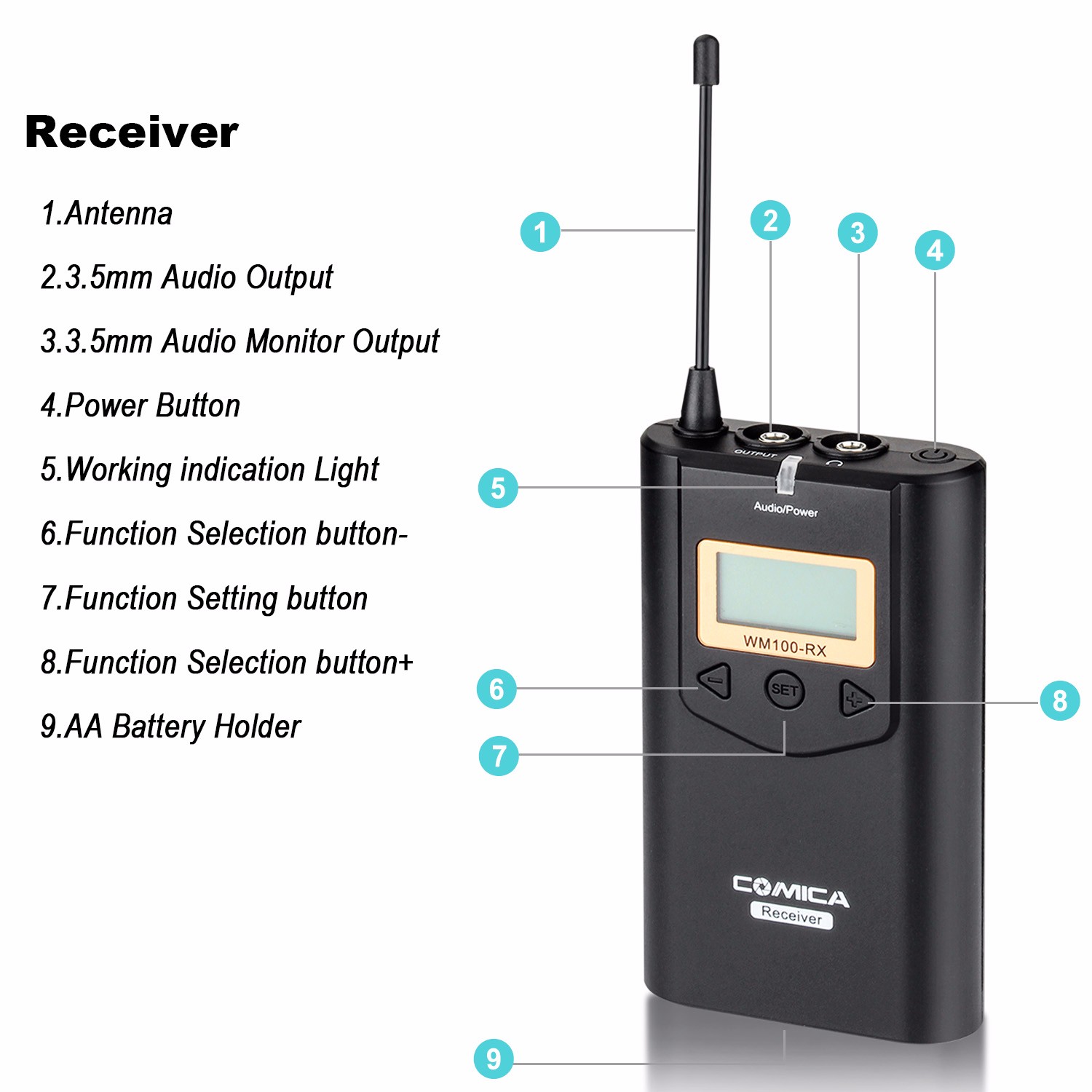

Receiver

• Channels: 48
• Wireless Frequency: 615.35MHz ~ 629.45MHz
• Signal / Noise:＞65dB
• Receiving Sensitivity: -95dBm
• Stray Radiation:＜-60dBc
• Sound Delay:＜20ms
• Audio Distortion:＜0.5%
• Frequency Range: 20Hz ~ 18KHz
• Audio Output: 3.5mm Port
• Supported Battery: AA Batteries x 2pcs
• Size: 111.5 x 65 x 25.3mm
