MAX. 200m LOS Range
With a high-gain, interference-resistant 2.4GHz antenna, WES supports up to 200m line-of-sight transmission distance, bringing freedom to your content creation.

Tech Specs
Name: Transmitter
Model: WEC TX
Transmission Type: 2.4GHz Frequency Hopping System
Pickup Pattern: Omnidirectional
Frequency Range: 20Hz-20KHz
Max. SPL: 110dB
Dynamic Range:     86dB
Max. Wireless Distance: 200m
Lithium Battery Parameters: 3.7V ⎓ 140mAh, 0.518Wh
USB-C Input:     5V ⎓ 160mA
Working Time: Approx. 8h
Charging Time: Approx. 2h
Working Environment Temperature: -10~50℃
Dimension: 48mmx22mmx16mm (1.89”x0.87”x0.63”)
Net Weight≈: 12g

Name: Receiver
Model: WES RX
Transmission Type: 2.4GHz Frequency Hopping System
Max. Wireless Distance: 200m
USB-C Input: Max. 9V ⎓ 2A
USB-C Output: 5V ⎓ 1A  5V ⎓ 2A  9V ⎓ 1A  9V ⎓ 2A
Working Environment Temperature: -10~50℃
Dimension: 48mmx27mmx11mm (1.89”x1.06”x0.43”)
Net Weight≈: 7g

Name: Charging Case
Model: WES-C1
Lithium Battery Parameters: 3.7V ⎓ 1400mAh, 5.18Wh
USB-C Input:     5V ⎓ 1.3A
Working Time: Charge 2 devices for about twice
Charging Time: Approx. 2h
Working Environment Temperature: -10~50℃
Dimension: 63mmx85mmx30mm (2.48”x3.35”x1.18”)
Net Weight≈: 83g

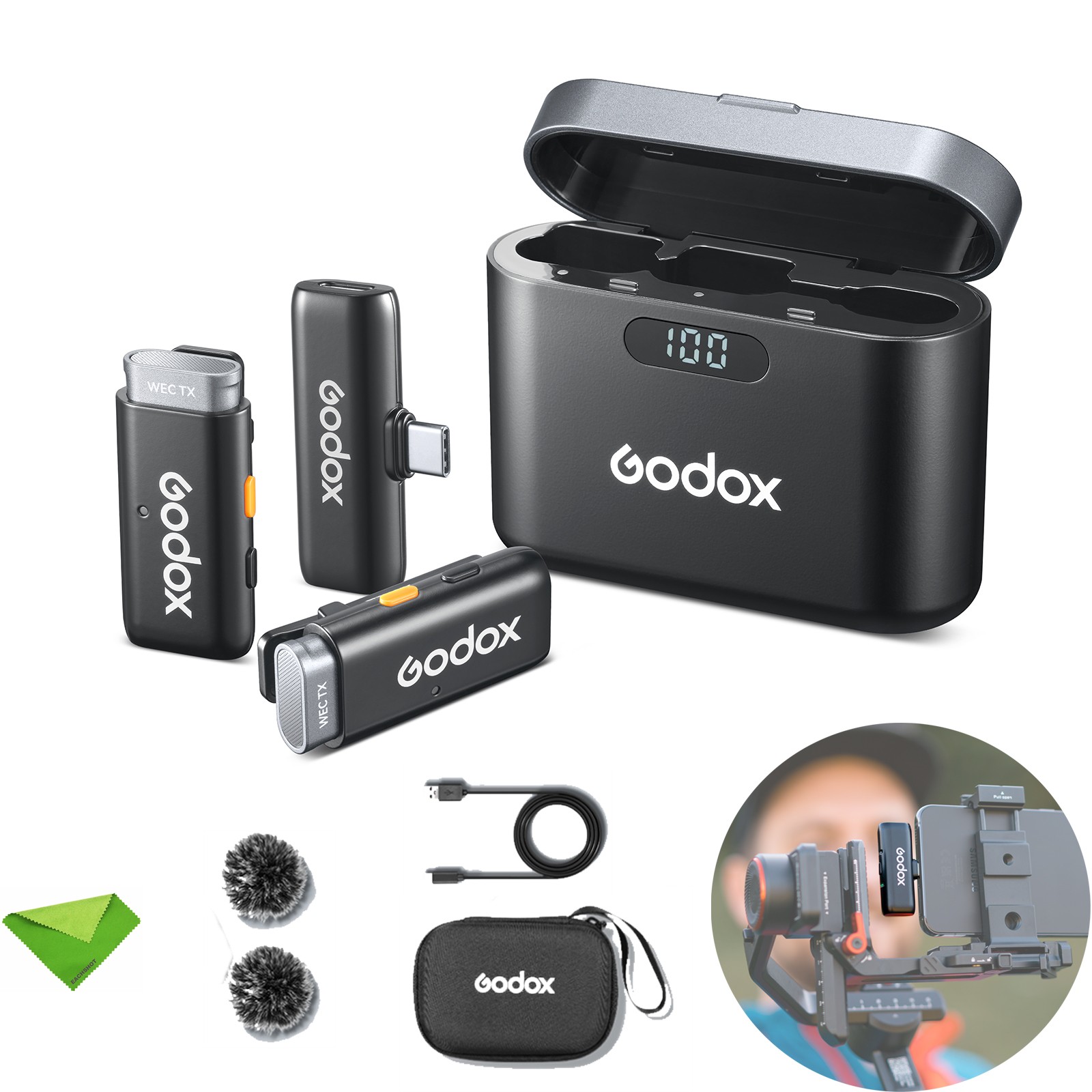

Package Including:
Transmitter ×2
Receiver ×1
Charging Case ×1
Storage Box ×1
Furry Windscreen ×2
USB-A to USB-C Data Cable ×1
Cleaning Cloth ×1
